36V 800W Brushed Motor & Controller Kit for eBike, ATV, Go Kart, Moped - High Power Electric Motor Upgrade for DIY Mini Bikes & Motorized Bicycles - Perfect for Off-Road Adventures & Urban Commuting
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:11 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:71220853
Product Description

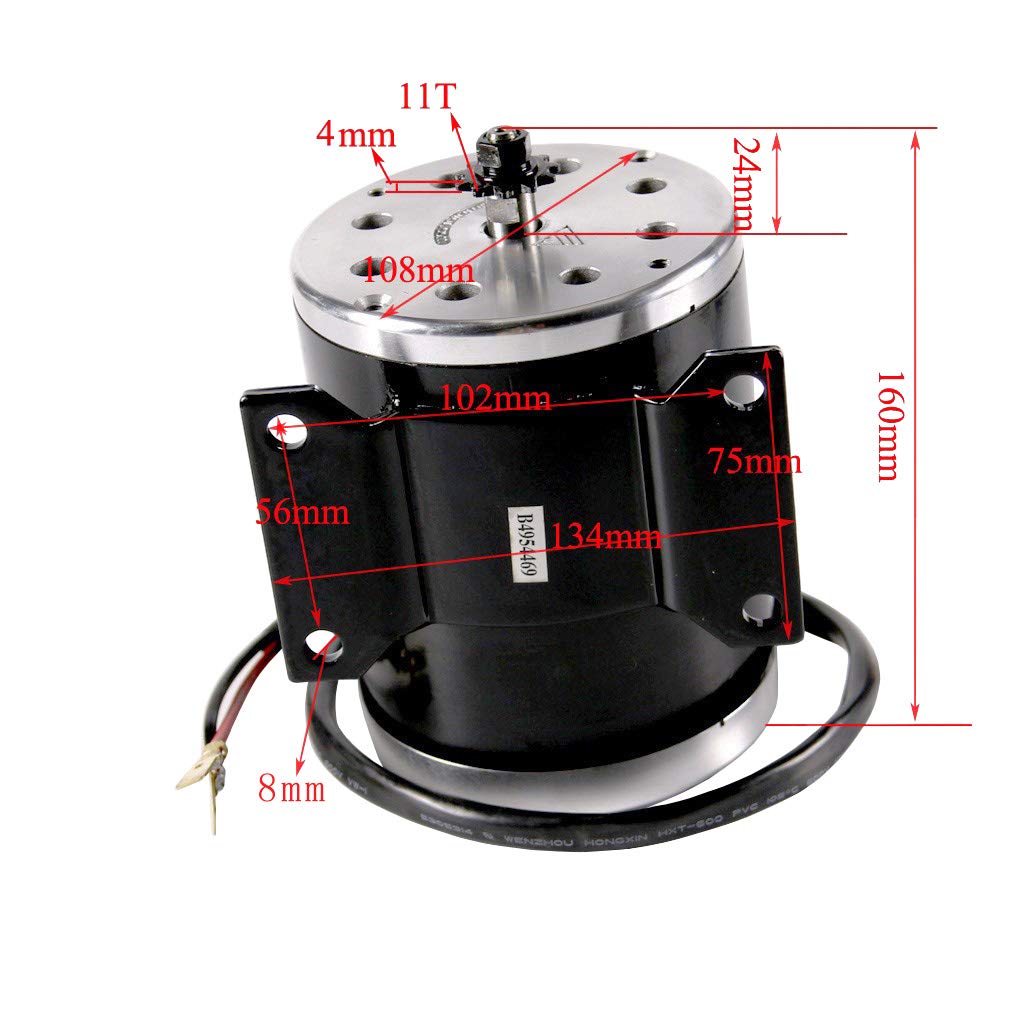

Motor:Output: 800WRated speed: 2750-3045 RPMRated voltage: 36V DCRated current: 27ANo-load current: ≤2.6APeak efficiency at 36V: 80 percentReversible: (w/ polarity swap)Sprocket：for 25H chainNote: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Controller:Rated voltage: 36V DCConversion efficency: 95% Under Voltage Protection: 31.5±0.5VSpeed regulator (throttle): 1-4 VController Wiring:This controller has 8 connectors, compatible with many 36V bikes with up to 800W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.
Product Features
Type of Motor DC, Brush; Sprocket 11 teeth for 25H chain, Horsepower 1.1HP
Rated torque ≥2.3N.m; Output 800W; Rated speed 2755RPM
Rated voltage 36V DC; Rated current 27A; No-load current ≤2.6A
Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes
Package includes 1x Motor + 1x Controller (see "Product Description" for wiring instruction)
